Electrical Permanent Magnet Motor Electrical Permanent Magnet Motor Electrical Permanent Magnet Motor

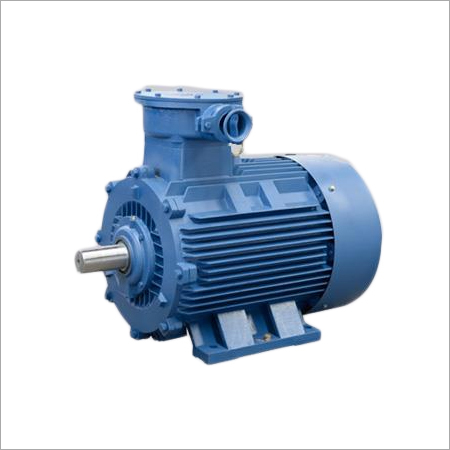

Electrical Permanent Magnet Motor

Product Details:

X

Product Description

Electrical Permanent Magnet Motor is used in electric motors, electric generators and wind turbines, which are usually for air conditioners, washing machines, refrigerators, power tools, servos, robots, compressors, automotive electronic components etc. It is engineered using high quality raw material in adherence with international quality standards. Consumer can get  this Electrical Permanent Magnet Motor from us at reasonable costs.

DETAIL SPECIFICATIONS:

  • Frame Size= 315S / M
  • Power= 90 kW
  • Number of poles= 16
  • Frequency= 80 Hz
  • Rated voltage= 380 V
  • Nominal chain= 175 A
  • Nominal rotation= 600 rpm
  • Nominal conjugate= 1433 Nm
  • Insulation class=  F
  • Service factor= 1.00
  • Moment of inertia (J)= 6.86 kgm²4
  • Temperature elevation= 105K
  • Duty= S1
  • Room temperature= -20 ° C to +40 ° C
  • Altitude= 1000 m
  • Degree of protection=  IP55
  • Cooling method= TFVE
  • Constructive way= V3T
  • Direction of rotation¹= Both
  • Starting method= Inverter
  • Approximate mass³= 1260 kg
  • Power factor= 0.87-
  • Operating limit with frequency inverter
  • Peak phase-to-phase peak voltage <= 1600 V
